7403 Key management, Borobil Series


Key interchanging box with 3 cylinders; 1 free key maintains 2 keys trapped.

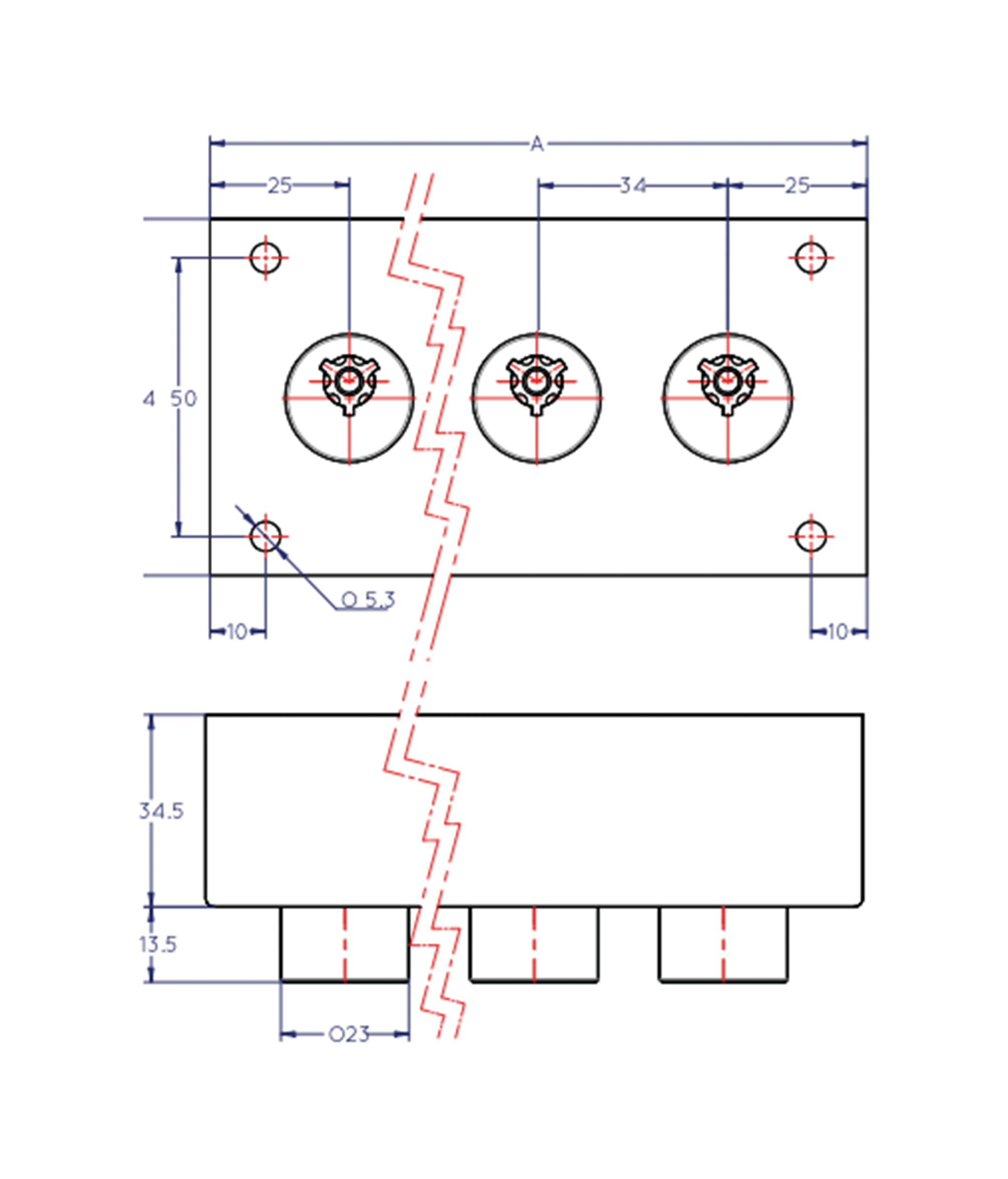

REFMANOUEVRENº OF CYLINDERSACODE
 7403STANDARD3118 UT7403I000
 7404STANDARD4152 UT7404I000
 7405STANDARD5186 UT7405I000
 740XSTANDARDXA (X-1) +34UT740XI000

STANDARD MANOUEVRE

intercambiadores-7403-posicion-inicialINITIAL POSITION

Key nº 1 free
Key nº2 and nº3 trapped

intercambiadores-7403-posicion-tras-maniobraPOSITION AFTER MANOEUVRE

Key nº 1 trapped
Key nº2 and nº3 free
